Grading a site in Oklahoma City can fix a drainage problem or create a brand new one, and a topographic survey is what tells the difference ahead of time. The city holds developers to specific detention, grading and storm water rules, so a plan that ignores real elevations rarely survives review. Before a dozer touches the dirt, the design team needs to know how the land already moves water. That picture comes from field measurement, not guesswork, and it shapes almost every grading decision that follows.

Drainage trouble usually hides in inches, not feet. A pad set a little too low or a swale built a little too flat can pond water for years. Careful elevation data keeps those small mistakes off the finished site.

Record the Ground Before the Dozers Change It

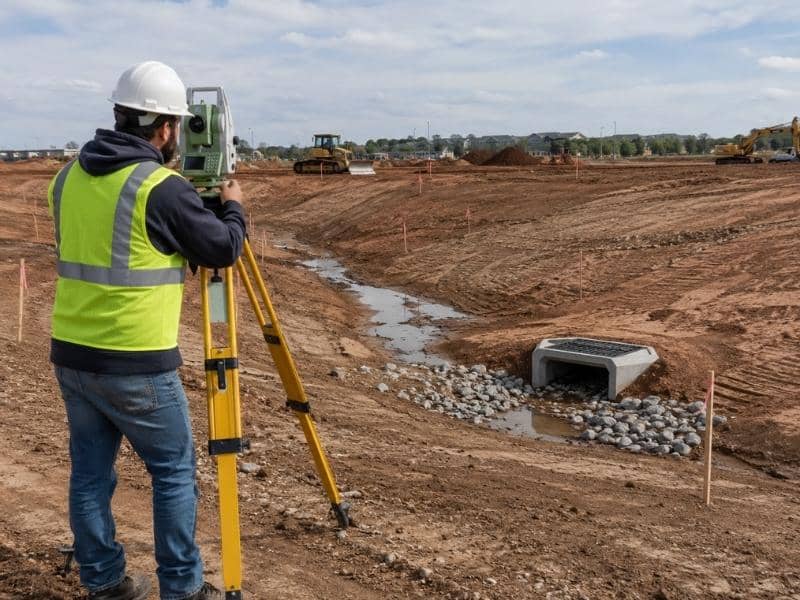

Clearing and grading erase the clues that show how a property drains, so the survey has to come first. The crew captures untouched elevations along ridges, shallow depressions, pavement edges, channels and any visible spots where water leaves the site. Together these readings form a baseline that describes the natural surface before earthwork rewrites it.

That baseline earns its keep once construction starts. When a question comes up about where runoff used to go, the original data answers it. Designers also use it to prove that a new grading plan won’t dump more water onto a neighbor than the land did before.

Track the Water Coming In From Next Door

storm water doesn’t respect property lines, so a good drainage plan looks past the boundary. The survey measures street grades, neighboring slopes, culvert outlets and curb openings that send water toward the site. These off-site sources often decide how large a detention area has to be.

If the design ignores that incoming flow, the whole system can undersize itself. Water arriving from an uphill street or an adjacent tract still has to go somewhere. Mapping those entry points early lets the engineer size pipes and basins for the real load instead of a hopeful one.

Watch the Spots Where Grades Have to Meet

Elevation data really proves its worth at transitions, meaning the places where two surfaces come together. Building pads, parking lots, driveways, accessible routes and inlet rims all have to tie into the grades around them. When those tie-ins clash, water pools or the surface drops off too sharply to use.

The survey gives designers the exact heights they need to smooth those connections. A driveway can meet a street without trapping water at the gutter, and a parking lot can drain toward its inlets instead of away from them. Getting these joints right on paper prevents expensive regrading after paving.

Stake the Points Where Runoff Changes Course

Some grade changes exist on purpose. Swales, crowns, drainage divides and channel edges all steer water in a chosen direction, and each one needs field control so the crew builds it as drawn. Without staked reference points, an operator ends up shaping slopes by eye, which rarely matches the engineered surface.

Placing that control where runoff turns keeps the built grade honest. A swale ends up deep enough to carry flow, and a crown sheds water evenly to both sides. The result behaves the way the storm water plan intended, even after months of construction traffic.

Check the Built Grade Against the Plan

Grading looks finished long before it actually performs, so measured verification matters. After each major stage, the crew shoots the constructed elevations and compares them to the approved design. This check catches low spots, wrong slopes and misplaced drainage features while fixes are still cheap.

Waiting until paving hides the problem is the costly path. A slope that missed its target by a fraction can send water the wrong way across a whole lot. Comparing built surfaces to the plan early gives the team room to correct course before the site hardens into place.

Frequently Asked Questions

Does a topographic survey replace storm water engineering?

No. The survey supplies accurate elevations, and the engineer uses that data to design the drainage system. One measures the ground while the other decides how water should move across it, so both roles stay separate and necessary.

What vertical reference should be used for drainage design?

Most projects tie to a published datum such as NAVD 88 so every elevation shares one consistent starting point. Mixing references invites errors that show up as ponding or reversed slopes. A single agreed datum keeps the survey, the design and the field crew speaking the same language.

Are curb openings and inlet throats measured separately?

Yes, because small features control big volumes of water. The exact height of a throat or opening decides whether an inlet actually captures runoff. Surveyors record these points individually rather than folding them into general spot elevations.

How dense should survey points be near a shallow swale?

Shallow swales need tighter point spacing since a small elevation error changes how they drain. Crews collect readings close together along the flow line and the banks. That density gives the designer enough detail to model a slope that moves water without standing still.

When is supplemental fieldwork needed after plans change?

A redesign that shifts pads, drives or drainage often outruns the original survey. When the layout moves, fresh measurements confirm the new features fit the real ground. Skipping that step risks building a plan against elevations that no longer apply.
